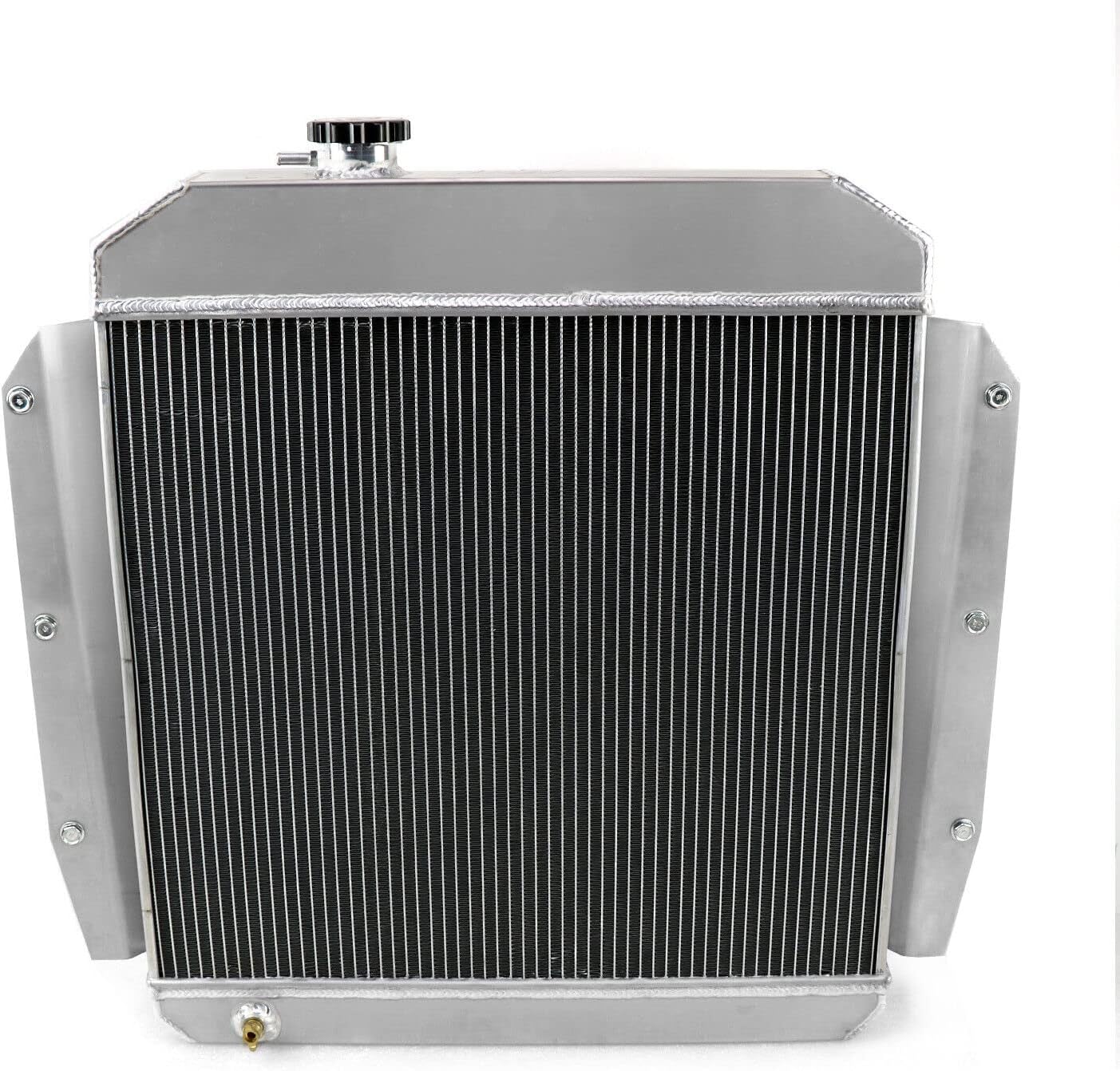

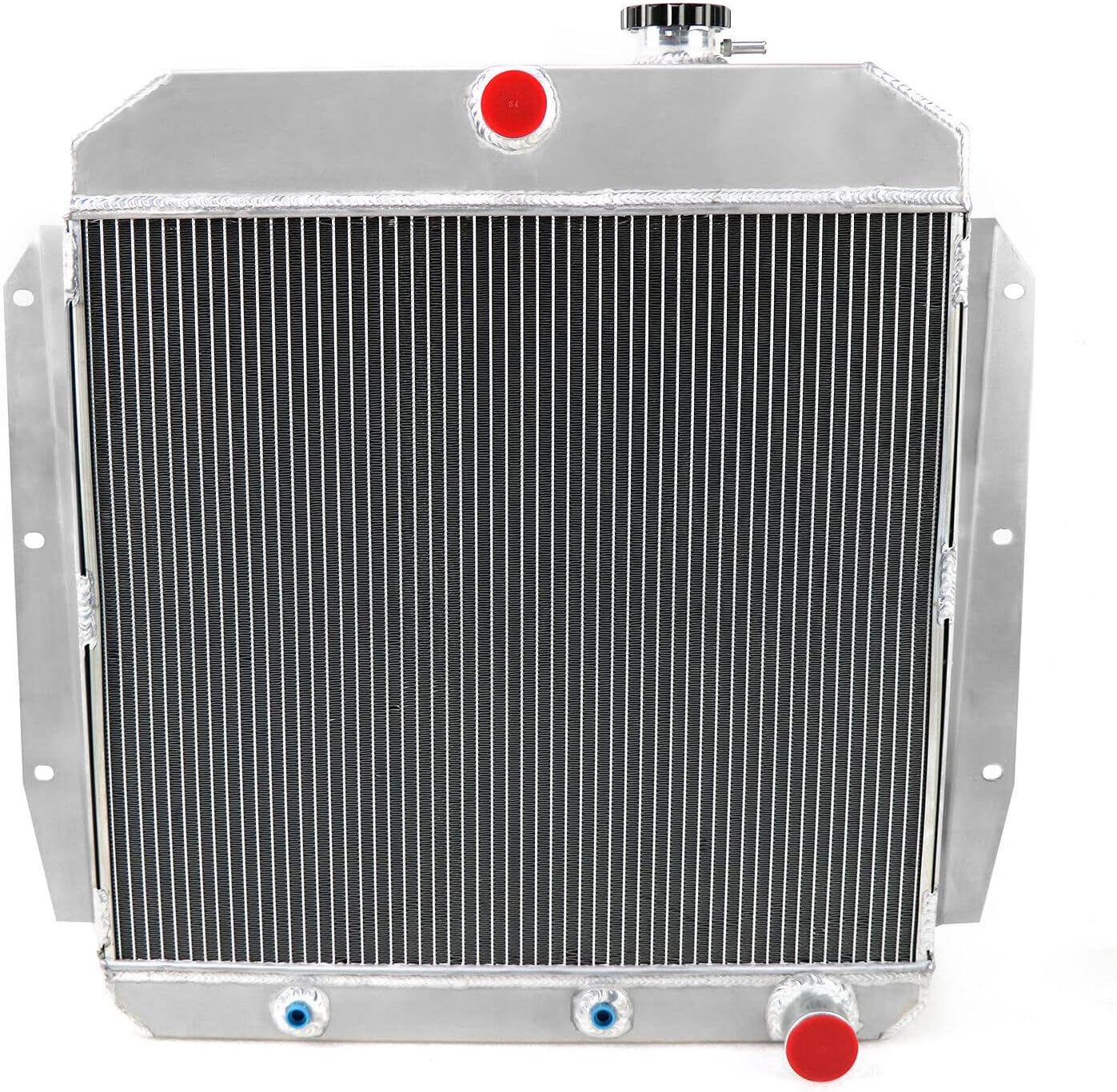

            [pname] => 4 Row Radiator for 1955-1959 Chevy GMC Pickup Truck 3100 3400 3600 3800 1956 1957 1958 55-59 56 57 58 V8 All Aluminum Radiators Shroud Fan & Relay 4 Core Radiators
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check out full details and more pictures here:

>>> CLICK HERE <<<



Vehicle Fitment: For 1955-1959 Chevy 3100 Truck Pickup 3.8 l6 4.3 4.6 V8; For 1959 Chevy 3B 3200/3C 3400/3D 3500/3E 3600 /3F 3700/3G 3800 3.8 l6 4.6 V8; For 1955-1958 Chevy Truck 3100 3200 3400 3500 3600 3800 3.8 l6 4.6 5.7 V8

Radiator Specifications : Core Dimensions: 19 3/8" high x 21 3/4" wide; Overall Dimensions: 26 3/4" high x 26 1/2" wide. Upper inlet: 1 1/2" located in center; Lower outlet: 1 3/4" located on passenger side.

Reference Number: Manufacturer Part Number: 5559,CC5559,CU5559,RAD5559,DPI5559; Interchange Part Number: SDD-RA-CHEVYT55-3,RA-CHEVYT55-3,RA-CHEVYT55-2; OE/OEM Part Number: 5559,CC5559,EC5559,DREC5559.MC555;

Advantage: Full aluminum construction with durable, TIG-welded end tanks, increased durability over the factory plastic end tank radiator. All aluminum construction & TIG-welded craftsmanship fully. High performance design, improves cooling by 30%+ temp

Note: 100% Leak Tested, Downflow Radiator, Durability Tested; ONE YEAR WARRANTY for Every Item.If you have any questions, please feel free to contact us, Cubauto will try our best to help you.Do not hesitate to get one!


› See more product details

Product Description

Vehicle Fitment



For 1955 - 1959 Chevy Pickup Truck

For 1955-1959 GMC Truck

For 55 56 57 58 59 Chevy Apache Truck

For 55 56 57 58 59 Chevrolet Truck pickup

For 55-59 GMC Pickup Truck

For 55-59 Chevy 3100 Pickup Truck

For 1955-1959 CHEVY TRUCK PICKUP SUBURBAN PANEL

FOR CHEVY TRUCK GMC 55-59

For CHEVY 3100 3200 3400 3500 3600 3800 55-59



Radiator Details



Brand: Cubauto

Row: 4 Row Core

Material: Full Aluminum

Radiator Cap: Included

Core and Tank: All Aluminum

Auto trans cooler: yes

OEM mount system

Transmission: Automatic and Manual.

Fitment Type: Performance/Custom

Placement on Vehicle: Engine Compartment

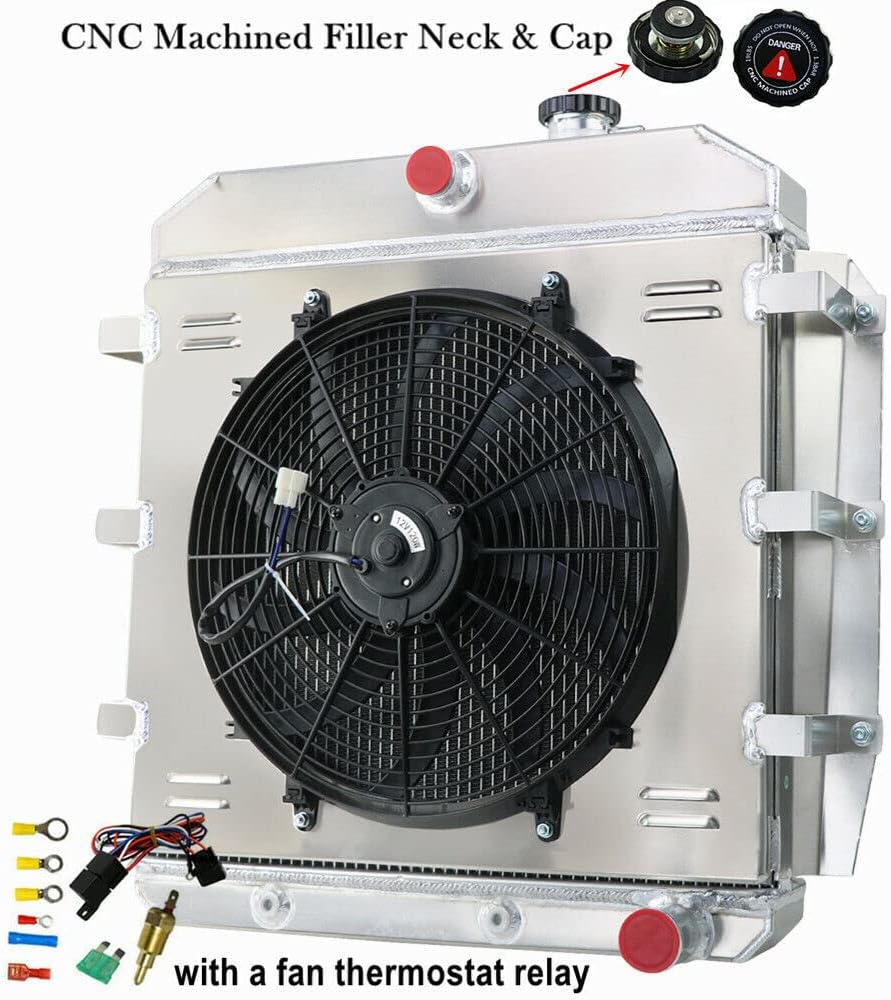

Fan Details



Fan Size: 16"

Volts: 12 V

Watts: 120 W

Number of Fan Blades: 10

Maximum Fan FAN CFM＞=1000 CFM

Maximum Fan RPM=2000±10% RPM

OE Fitment or Replacement, Push or Pull Type

Easy direct installation, require NO modification

Thermostat Kit:



Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.



Why Choosing Cubauto Radiator?



1. Maximum cooling efficiency

2. High security and performance

3. Excellent aluminum material

4. Stability and durability

5. Drop-in installation

6. High temperature resistance

7. Enhanced protection package
