            [pname] => 3 Row Radiator Fit 65-1967 Pontiac LeMans Tempest GTO 3.5L 3.8L 5.3L AT CC1680
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check out full details and more pictures here:

>>> CLICK HERE <<<

Package Include:

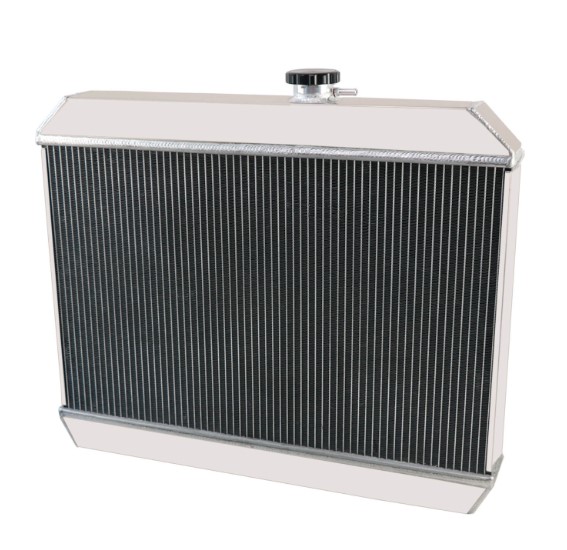

1 x 3-Row AA5052 Aluminum Radiator

1 x CNC Machined Radiator Cap





Radiator Size

Condition: New

Row: 3 Rows Core

Material: Full Aluminum

Core Size: 15 1/2" H x 25 1/8" W x 1 3/4" T

Overall Size: 21 3/4" H x 25 1/2" W

Upper Inlet 1-1/2" located on the Driver side

Lower Outlet 1-3/4 located on the Passenger side

Transmission Oil Cooler: φ22*320*1/4NPT(T)

Transmission: Automatic

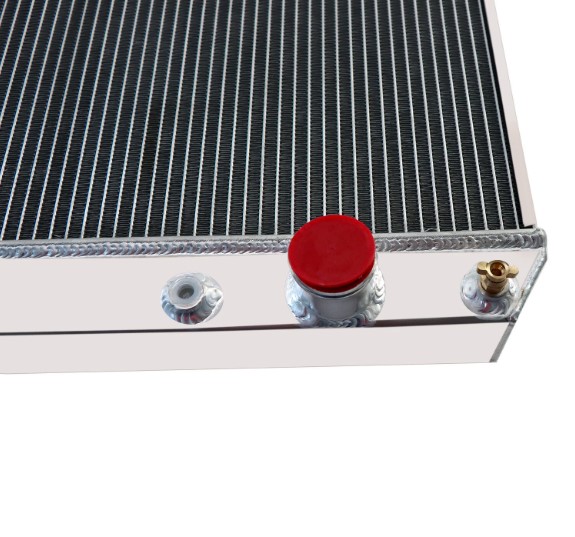

Petcock Drain: OEM Style Brass Petcock Drain

Radiator Cap: CNC Machined Filler Neck and Cap

High Performance Racing Spec.



Vehicle Fitment:

Year  Make Model Engine

1967 Pontiac GTO 6.6L 400Cu. In. V8 GAS Naturally Aspirated

1967 Pontiac GTO 6.6L 6555CC 400Cu. In. V8 GAS OHV Naturally Aspirated

1966 Pontiac GTO 6.4L 6376CC 389Cu. In. V8 GAS OHV Naturally Aspirated

1965 Pontiac GTO 6.4L 6376CC 389Cu. In. V8 GAS OHV Naturally Aspirated

1967 Pontiac LeMans 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1967 Pontiac LeMans 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated

1966 Pontiac LeMans 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1966 Pontiac LeMans 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated

1965 Pontiac LeMans 3.5L 3524CC 215Cu. In. l6 GAS OHV Naturally Aspirated

1965 Pontiac LeMans 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated

1967 Pontiac Tempest 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1967 Pontiac Tempest 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated

1967 Pontiac Tempest 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1966 Pontiac Tempest 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1966 Pontiac Tempest 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated

1966 Pontiac Tempest 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1965 Pontiac Tempest 3.5L 3524CC 215Cu. In. l6 GAS OHV Naturally Aspirated

1965 Pontiac Tempest 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated

1965 Pontiac Tempest 3.5L 3524CC 215Cu. In. l6 GAS OHV Naturally Aspirated

1965 Pontiac Tempest 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated

1965 Pontiac Tempest 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated





Upgrade Performance:

1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish

2.Brazed core technology to guarantee optimum performance and dependability

3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4.Billet Aluminum CNC machined fill neck rugged and durable

5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6.OEM style brass petcock drain much better than other plastic one on eBay

7.Carefully crafted to exceptional OE standards for precise fit.



Description:

Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
