            [pname] => Full Aluminum Radiator for 1965-1969 66 67 68 Dodge Coronet/Charger & 1963-1967 Plymouth Belvedere/Fury 64 65 66, 4 Row Core Radiators with Shroud + Fan + Relay
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check out full details and more pictures here:

>>> CLICK HERE <<<



■Core Dimensions : 17-1/2" H x 22" W x 2 Thick; Overall Dimensions : 23-3/4" H x 26" W x 3-1/2" Tank Thickness; OE/OEM Part Number; CC1635,AE1635,EC1635,MC1635,CU1635,DPI1635

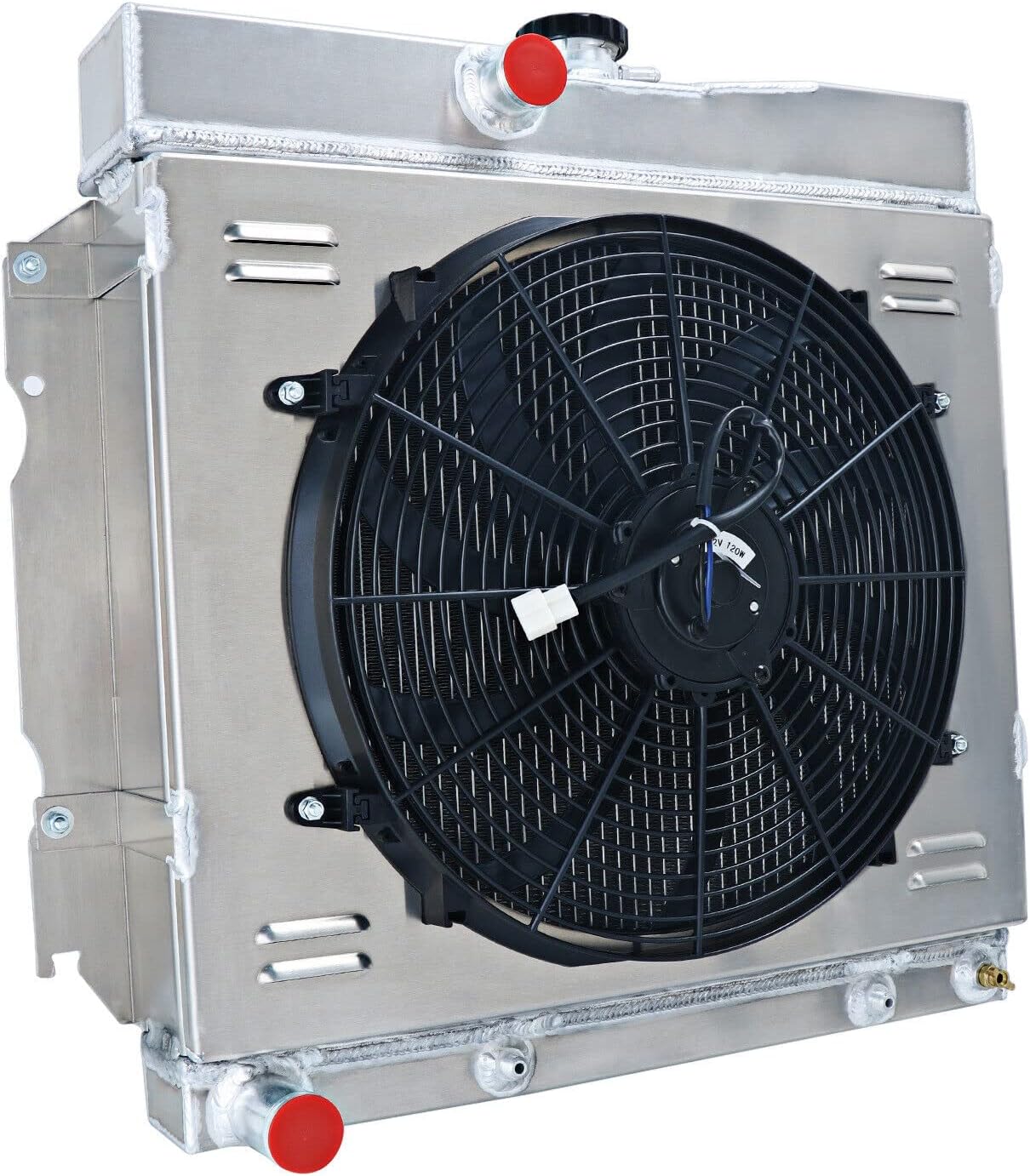

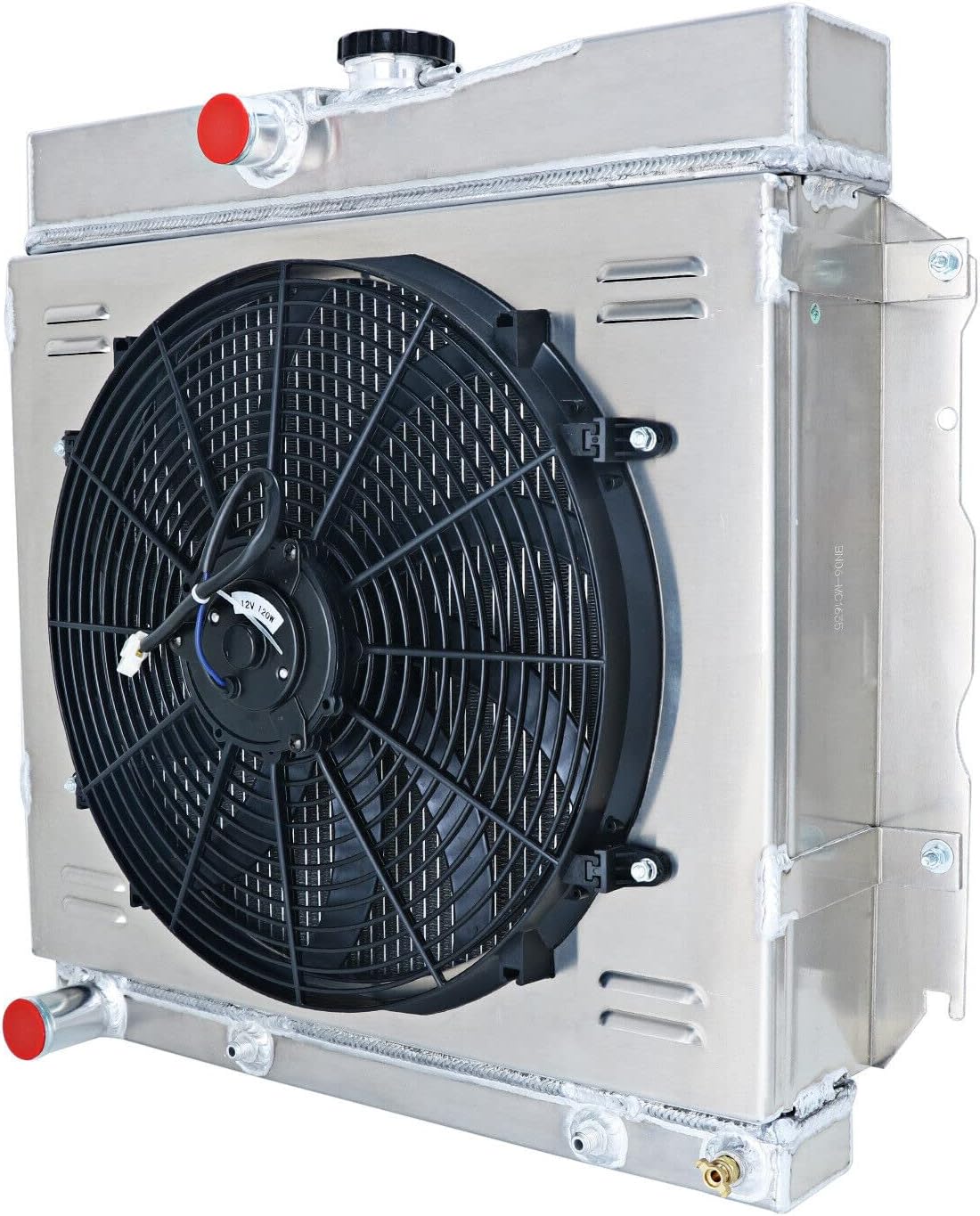

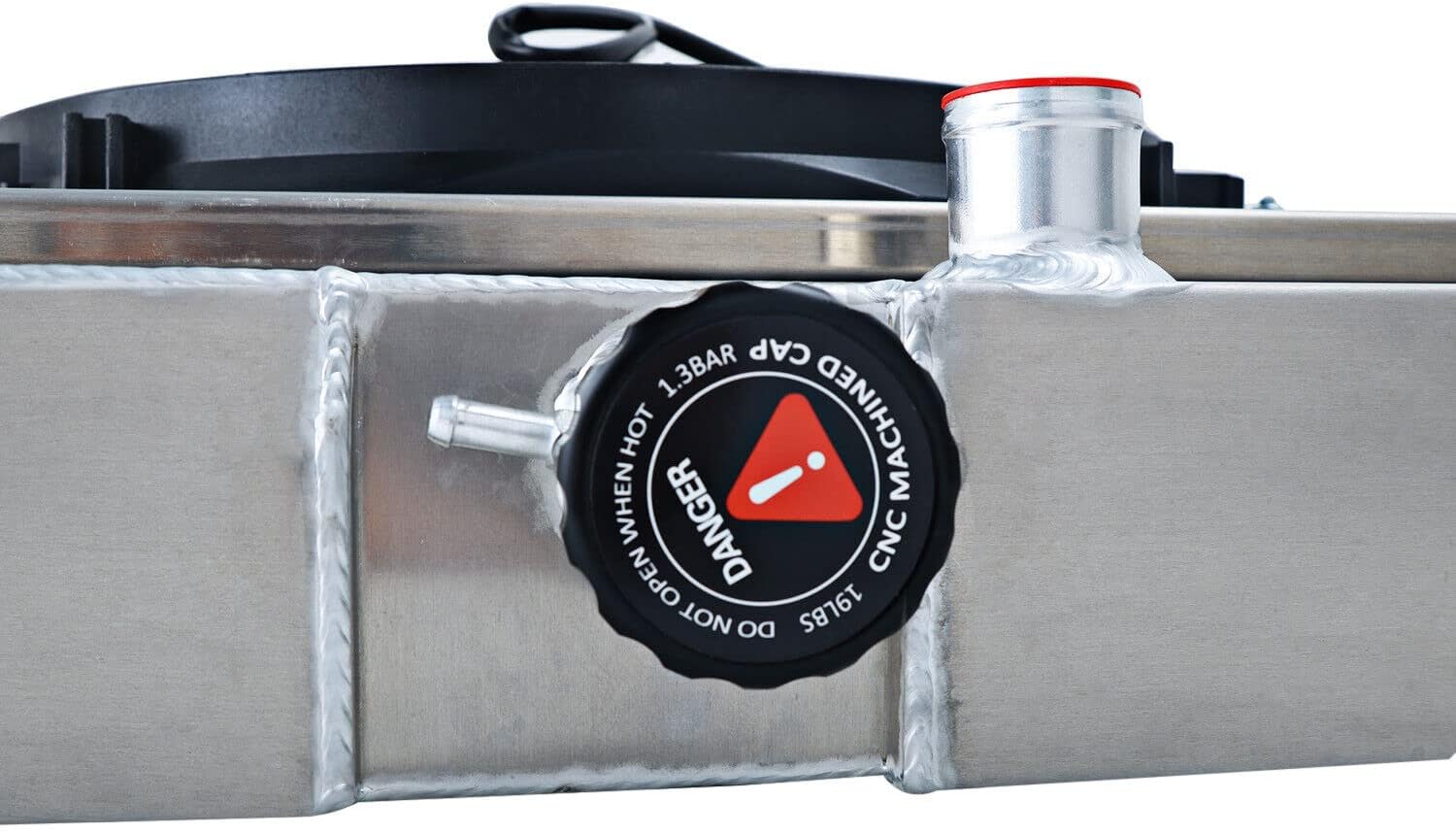

■This all Aluminum Radiator Shroud Fan Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain; Direct OE replacement with drop-in precise fitment and easy installation.

■High Quality: Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.

■Aluminum Radiator Shroud Fan: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.

■Package included：1 X 4-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP; 1 X AA5052 Aluminum Shroud; 1 X 16" 120W Fan; 1 X Thermostat Temperature Switch Relay Kit; 1-Year Warranty for Every Item .Do not hesitate to get one!


› See more product details

Product Description

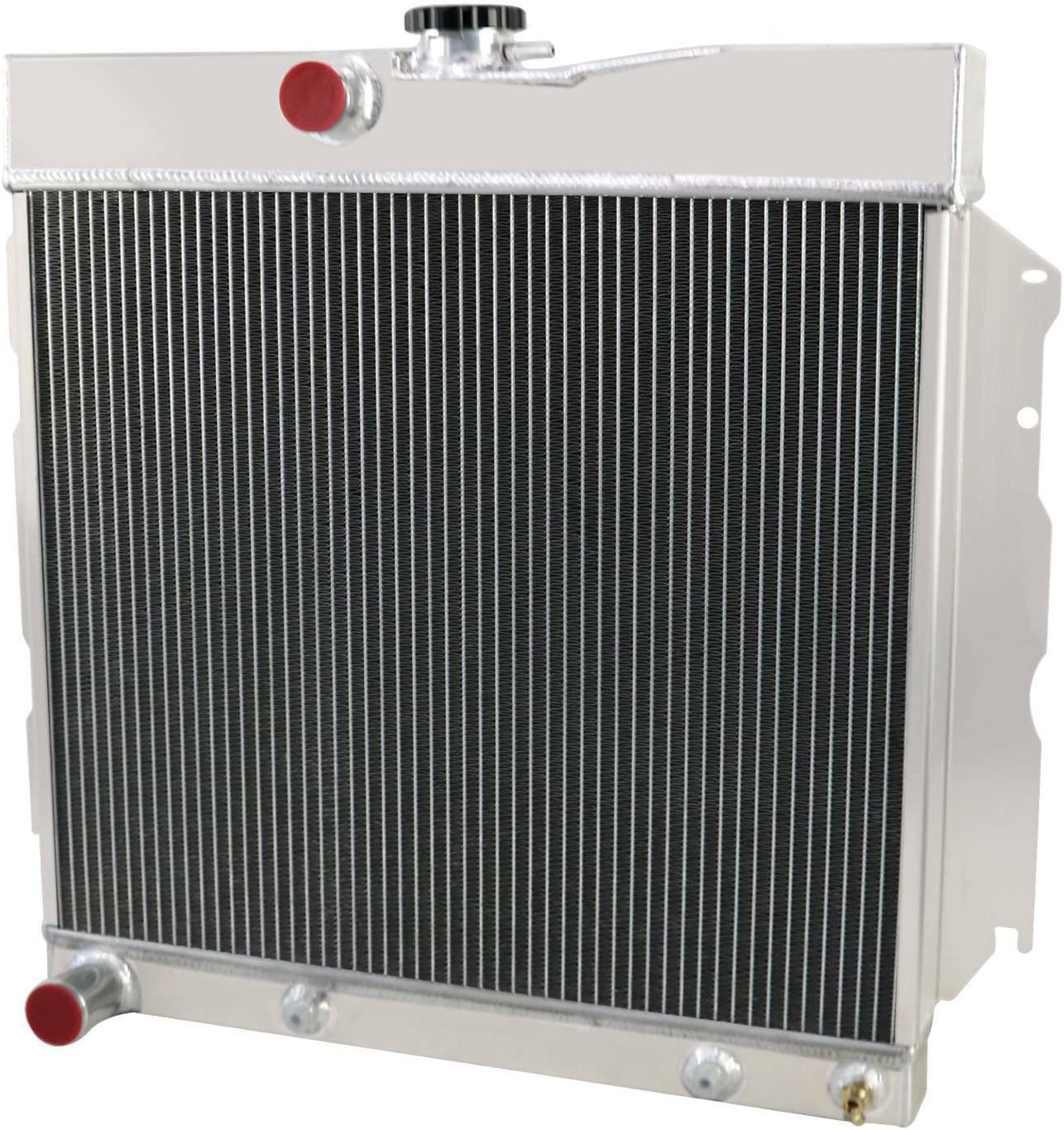

Radiator Size:



Brand: Cubauto

radiador de aluminio

Row Count: 4 Rows

Core Dimensions : 17-1/2" H x 22" W x 2 Thick

Overall Dimensions : 23-3/4" H x 26" W x 3-1/2" Tank Thickness

Upper Outlet Diameter : 1-1/2" located off-set in the Center

Lower Inlet Diameter : 1-1/2" located on the Driver side

Trans Cooler Details:￠26×255×1/2-20UNF



Application:



For 1965-1966 DODGE DART (V8 ONLY) 22" WIDE CORE

For 1966-1969 DODGE CHARGER 22" WIDE CORE

For 1965-1969 DODGE CORONET 22" WIDE CORE

For 1963-1967 DODGE STATION WAGON 22" WIDE CORE

For 1963-1965 DODGE 2-DOOR 22" WIDE CORE

For 1965-1967 PLYMOUTH SATELLITE 22" WIDE CORE

For 1963-1967 PLYMOUTH BELVEDERE 22" WIDE CORE

For 1963-1967 PLYMOUTH STATION WAGON 22" WIDE CORE

For 1965-1966 PLYM VALIANT-SIGNET (V8 ONLY) 22" WIDE CORE

For 1963-1964 PLYMOUTH SAVOY 22" WIDE CORE

For 1963-1967 PLYMOUTH FURY 22" WIDE CORE

OE/OEM Part Number : CC1635,AE1635,EC1635,MC1635,CU1635,DPI1635



Fan Specification:



Diameter : 16'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Amp Draw: 10amp

Fan Thickness: 3.27"

Powerful 120 watt motor will keep your engine cool.



Thermostat Kit:



Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

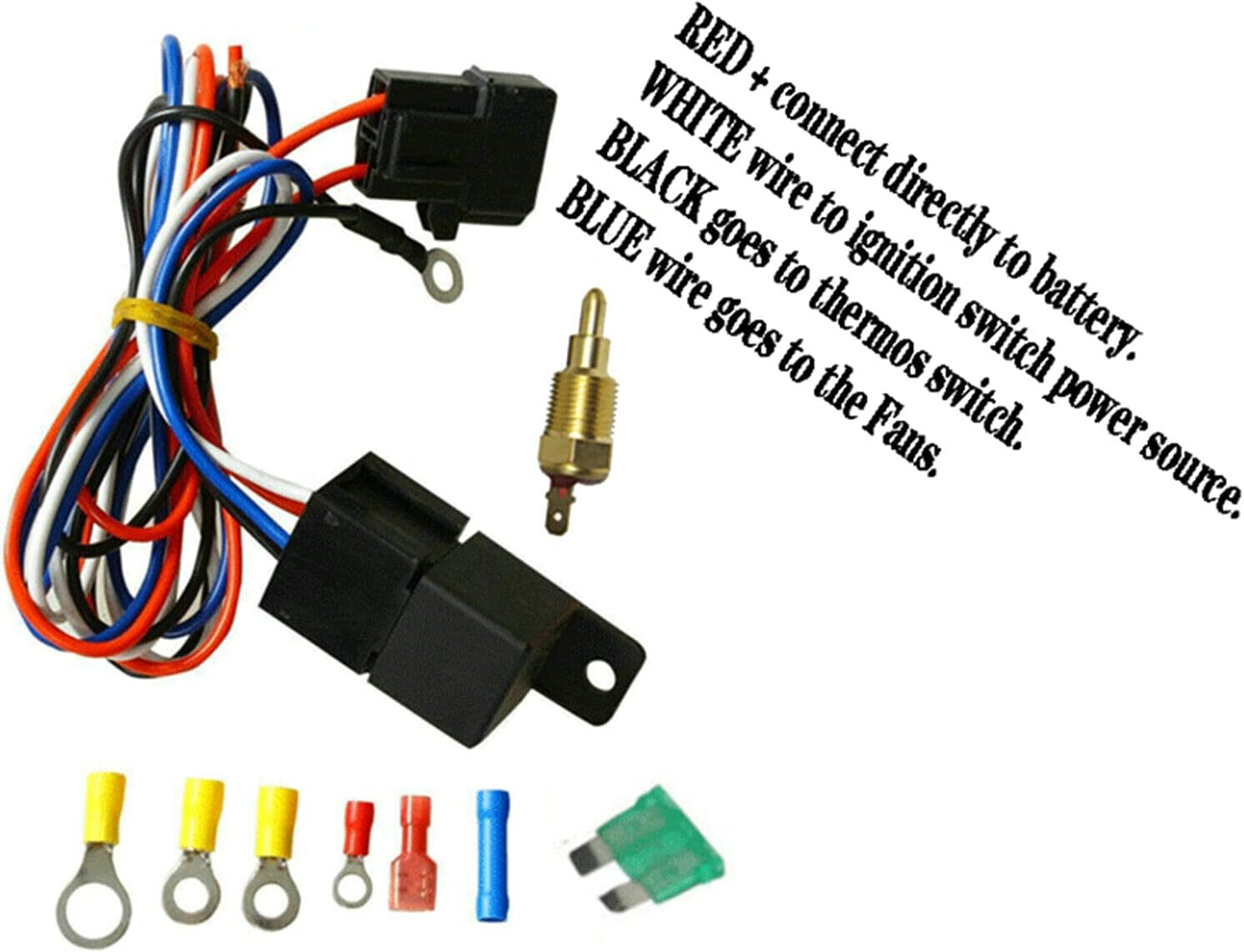

Thermostat Relay Kit Instructions：



RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
